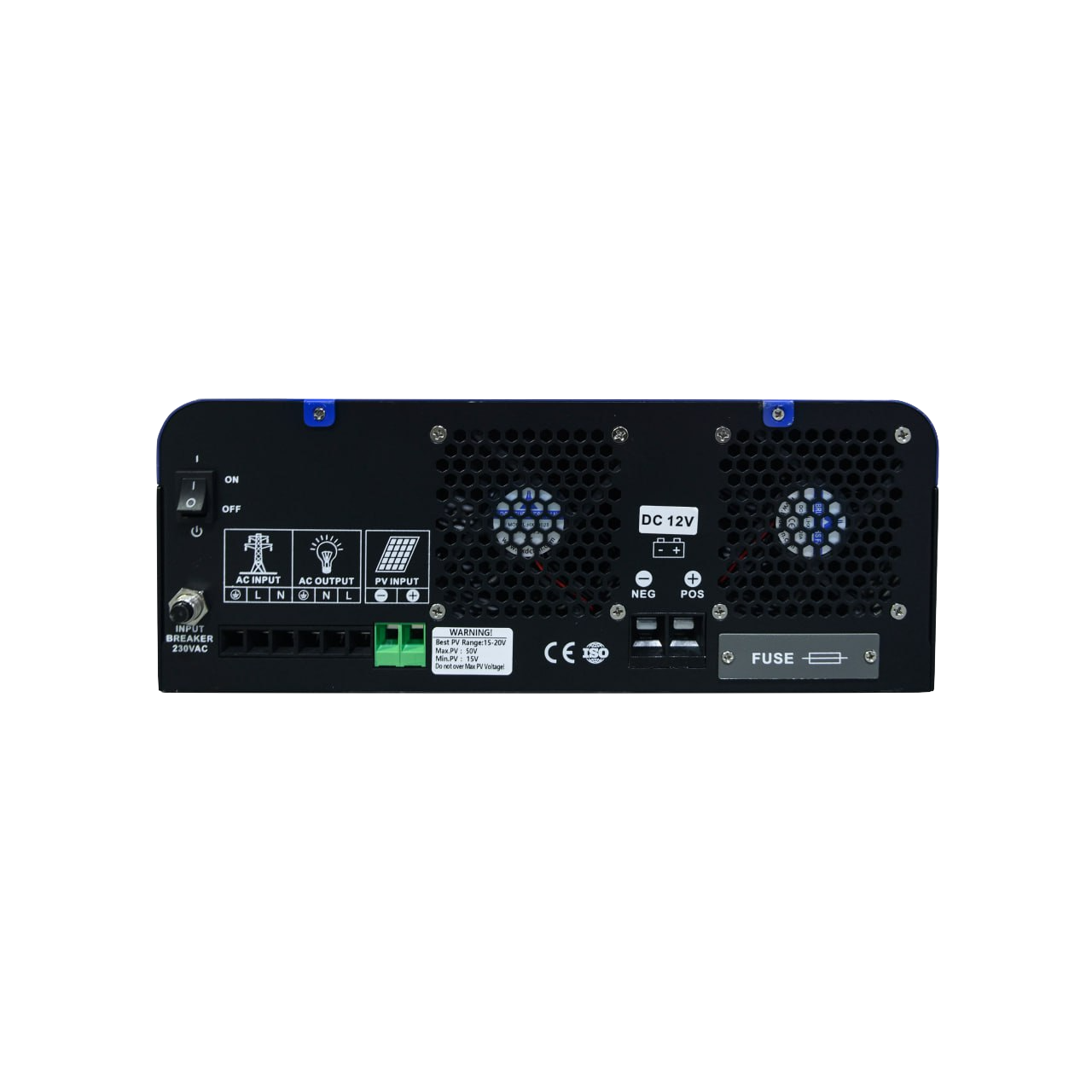

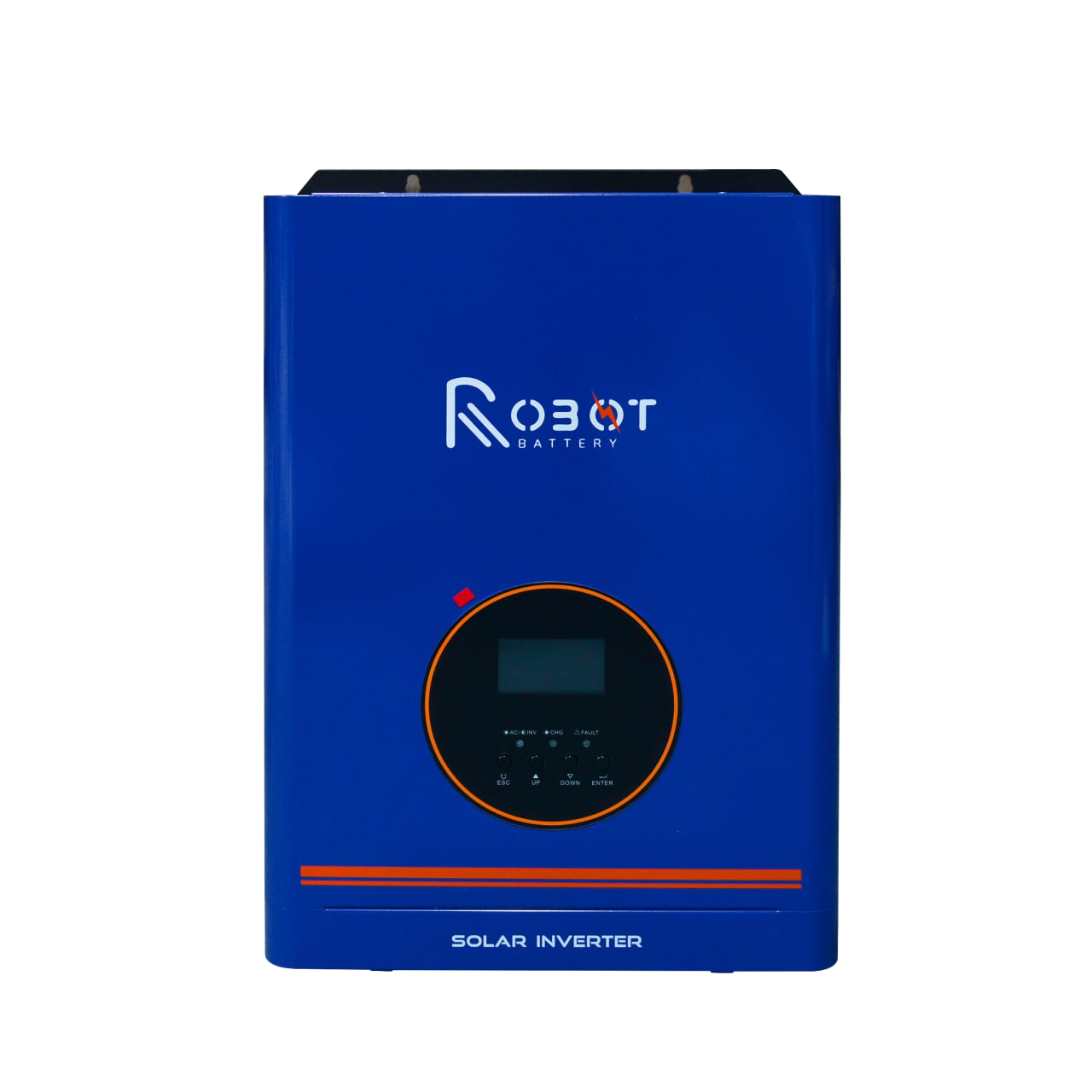

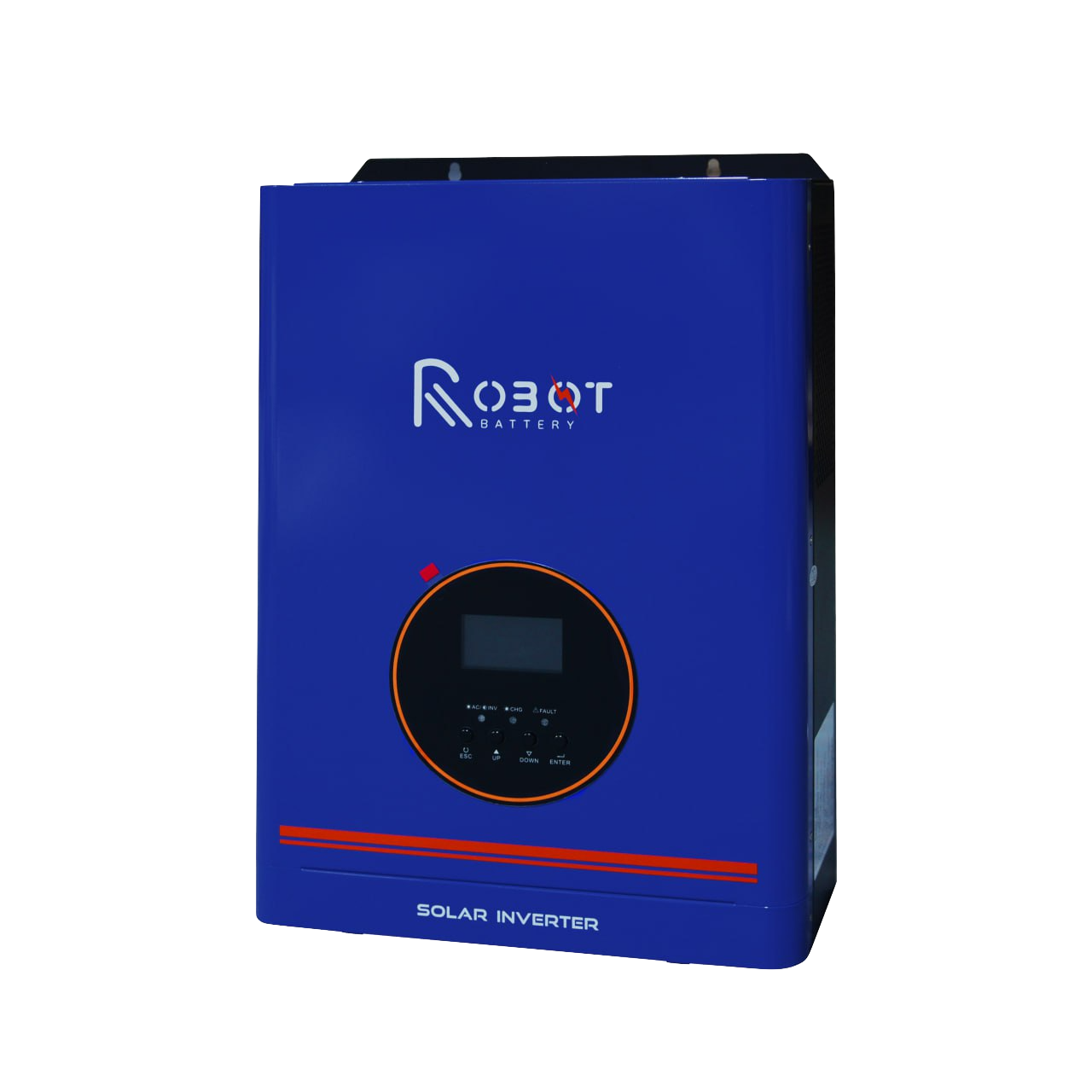

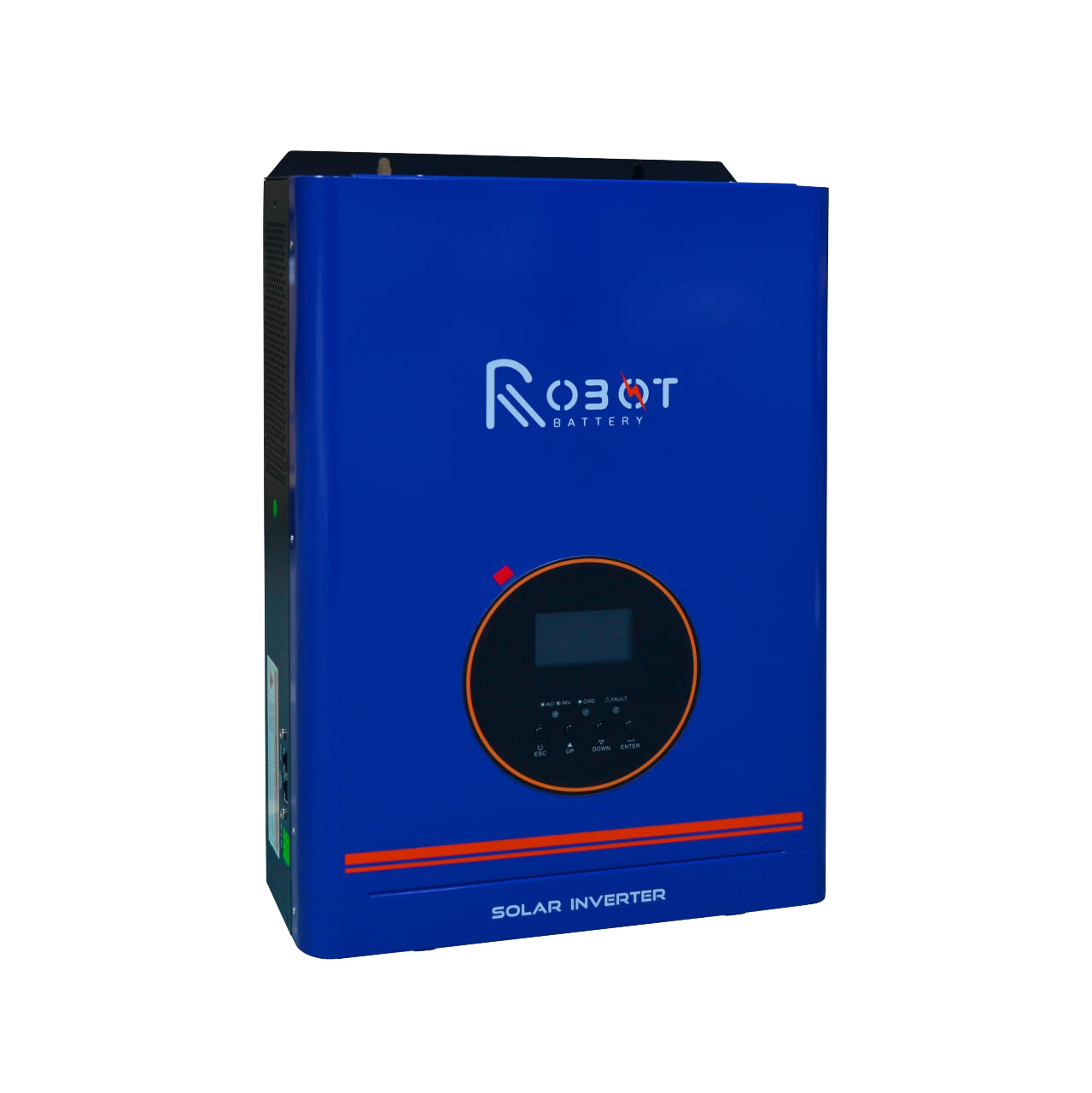

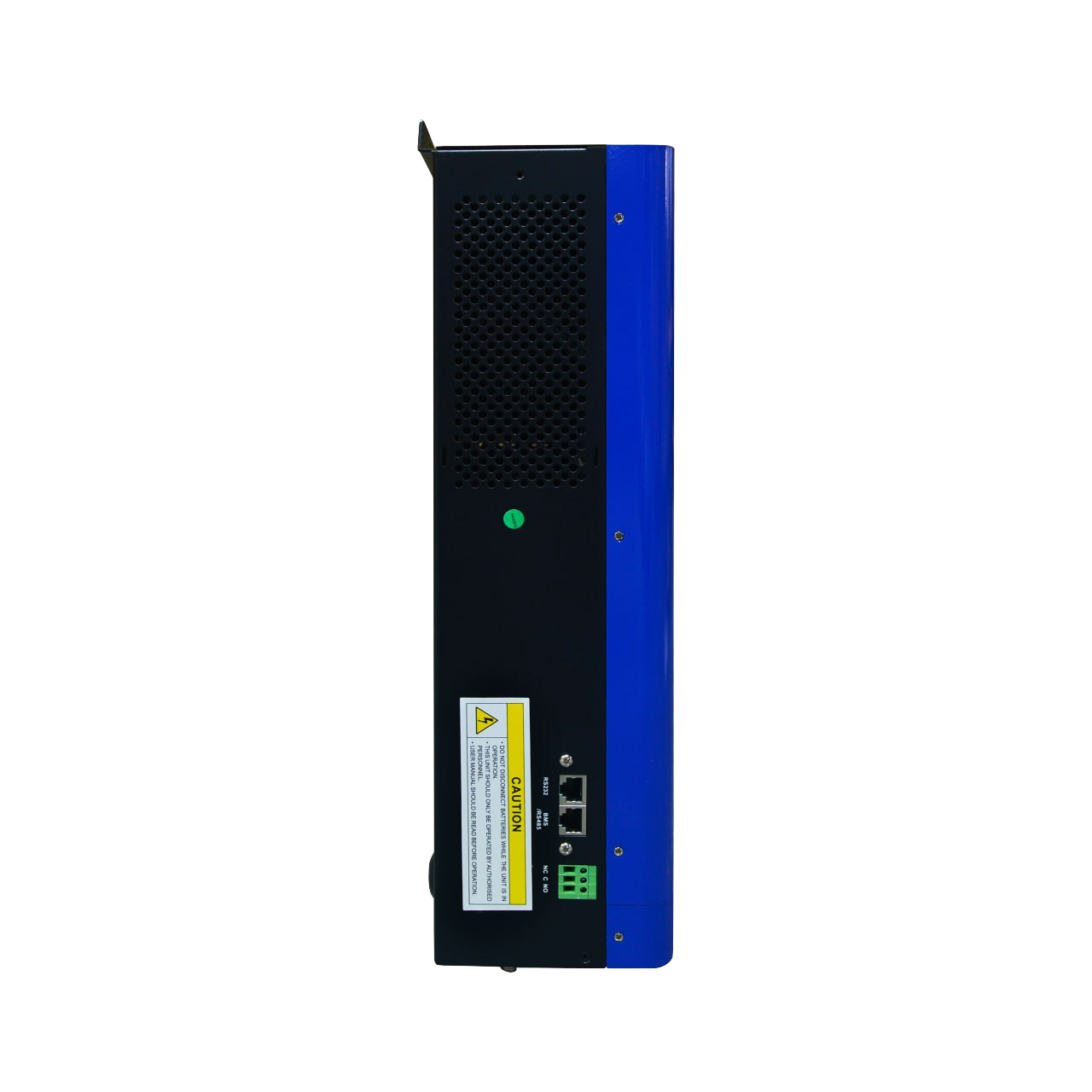

 Robot RB2012LF Low Frequency Inverter

OverviewSpecifications:Key Features:

Overview


The RB2012LF is a compact, light-weight inverter-battery hybrid designed for smaller residential applications and off-grid setups. Engineered for reliability and efficiency, it balances performance with affordability.

Specifications:

  • Output Power: 2 kW continuous, 2.2 kW peak
  • Battery Capacity: 12 Ah internal lead-acid (approx. 12 V)
  • Battery Type: Sealed Maintenance-Free Lead-Acid
  • Inverter Topology: Pure sine-wave
  • Efficiency: 92 % (inverter), 85 % (battery-charge cycle)
  • Input Voltage: 12 V DC (battery) / 100-240 V AC (charging)
  • Operating Temperature: –10 °C to +45 °C
  • Dimensions (L×W×H): 320×210×120 mm
  • Weight: 9 kg


Key Features:

  • True sine-wave output: Clean power suitable for sensitive electronics.
  • Integrated battery: Simplifies installation.
  • LED indicators: Show power status, battery level, fault alerts.
  • Smart charging: Automatically adapts to AC input conditions.
  • Safety features: Overload, short-circuit, over-temperature, and battery low-voltage protection.
